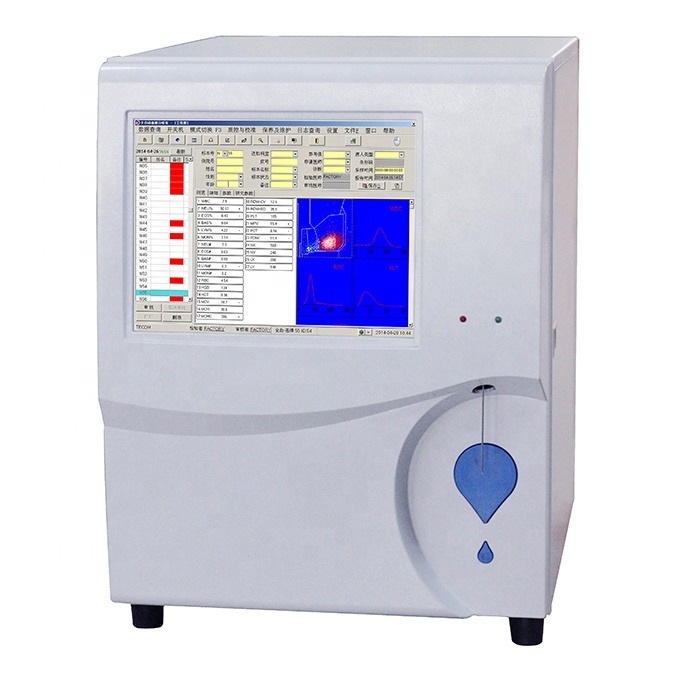

ZK-HA-8510 5-DIFF Automatic Hematology Analyzer
•12.1'' TFT Touch Screen
•27 parameters, 1 scattergrams and 4 histograms
•Technology:
Electrical Impedance
Double hydrodynamic focusing
Optical solid state LASER scattering
Wide angle light scatter
High efficient light collector (patented)
•Up to 60 samples per hour
•Original reagent, control and calibration
•Easy to operate: Friendly and Intellective Software
Principle:
l Optical solid state LASER scattering wide angle light scatter, high efficient light collector (patented), electrical impedance, double hydrodynamic focusing
Parameters:
l 27 parameters: WBC, LYM#, MONO#, GRA#, LYM%, MONO%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PDW, PCT and Histogram for WBC, RBC, PLT
l 1 Scattergrams: WBC interpreted scattergram
l 4 histograms: RBC, PLT, WBC, cyto
Throughput :
l Up to 60 samples per hour
Display:
l 12.1 inch touch screen
Samples Types:
l Whole blood, PLT only, HB only Capillary predilution, Diluent, control, calibrator
Performance
|
Parameter |
Linearity range |
Precision (CV%) |
|
WBC |
0.1-450 |
2.5 (7.0-15.0) |
|
RBC |
0.2-8.5 |
2.5 (3.50-6.0) |
|
HGB |
2-250 |
2.0 (110-180) |
|
MCV |
45-135 |
0.5 (80.0-110.0) |
|
PLT |
10-4000 |
5.0 (200-500) |
Sample Volume:
l Prediluted: 20μL
l Whole blood: 10μL
Carryover:
l WBC<0.5%, RBC<0.5% , HGB<0.5%, PLT<1.5%
Multi-Language:
l Chinese, English for optional and others can be customized
Data Storage Capacity:
l Up to 100,000 results including numeric and graphical information
Printout
l External laser printer/inkjet printer, various printout formats and user-defined formats
Operation Environment:
l Temperature: 18-32°C
l Humidity: 0%-85%
Power Requirement:
l AC100-240V 50/60Hz
Dimension:
l Instrument: 532mm*500mm*520mm
l Package size: 696mm*576mm*696mm
l N.W/G.W: 28kg/32kg
