홈 /제품 소개/크브크 분석기 기계/Metal Hot Selling Hematology Lab Equipment Medical Fully Automatic Hematology Analyzer and Cbc Testing Machine Price

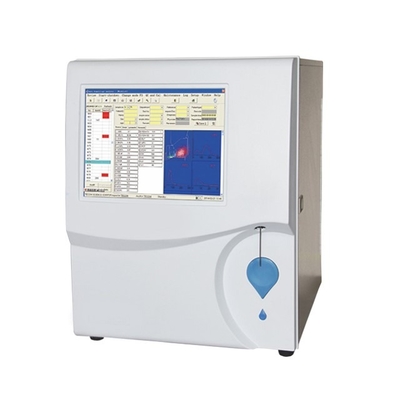

Metal Hot Selling Hematology Lab Equipment Medical Fully Automatic Hematology Analyzer and Cbc Testing Machine Price

1.0 Units
MOQ
Metal Hot Selling Hematology Lab Equipment Medical Fully Automatic Hematology Analyzer and Cbc Testing Machine Price
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: 8520
Power Source: Electric
Warranty: 2 years
After-sale Service: Online technical support
Material: Metal, Plastic
Shelf Life: 1years
Quality Certification: CE,TUV,ISO
Instrument classification: Class II
Safety standard: GB/T18830-2009
Display: 12.1inch touch screen
Product name: Blood Analysis SYstem, 5-part automatic hematology analyser
Throughput: 90 sample/hour
MOQ: 1
Storage: up to 100 thousand results with graphs
Dimension: 53.2x 40.0x 52.0 cm
Weight: 28 kgs
interface: Easy to operate, friendly
Certificate: CE ,TUV,ISO13485, ISO9001
기본 정보
인증: CE,TUV,ISO, CE ,TUV,ISO13485, ISO9001
Model Number: 8520
결제 및 배송 조건
Packaging Details: Paper box
Supply Ability: 50 Unit/Units per Month
제품 설명
Products Description
5 part Hematology Analyzer
5 diff differential of WBC
Double chambers for WBC and RBC/ PLT
27 parameters + 4 histograms +1 scatter diagram
Up to 90 samples/hour
Touch screen display
Storage: up to 100 thousand results with graphs
Barcode scanner for option
Dimensions &Weight: 53.2x 40.0x 52.0 cm, 28 kgs
Type
5-part hematology analyser
Throughput
Up to 90 samples/hour
Chart
27 parameters + 4 histograms + 1 scatter diagram
Sample Types
Whole Blood, Peripheral Blood, Predilute
Quality Control
Various quality control, L-J quality control chart, floating quality control for various requirements
Printout
External laser printer,
Data Transportation
USBx4, RS232、LAN、HDMI, Duplex LIS
Languages
English, Chinese, Support customization of other language
Other Function
360 ° rotating bar code scanning
Storage Capacity
More than 200,000 analysis results, including numeric and graphical information
Power Supply
AC100-240V, 50/60HZ
Display
12.1 inch colorful touch screen

3-part Hematology analyzer

5-part Hematology analyzer

Hematology Reagent

Hematology Spare Parts/Maintenance Parts
Power Supply Board
LCD connection board
Sample Probe
front bath shielding bottom panel
2.5ml Syringe
Indicator Board
10.4" LCD panel upgrade kit
SAMPLE PROBE WIPE BLOCK
3-way Valve(with pkg)
CAP Component,Rinse(1EA)
Keypad Board
Rotation Motor(4S42Q-12048)
HGB Assy
2-way Valve(with pkg)
CAP Component,Lyse(1EA)
CPU board(new flash)
Syringe Motor
RBC Bath (without ruby)
2-way Solenoid Valve
CAP Component,Diluent(1EA)
CPU Board
Elevator Motor(2S42Q-05640A)
WBC Bath (without ruby)
3-way Solenoid Valve
Tube Component For Waste
3003 Key-Press Board FRU(10.4)
sensor package
Isolation Chamber
Vaccum/Pressure Chamber
AIR FILTER
3003 CPU Board FRU(10.4)
Elevator Motor Pos Sensor Assy
clip for isolation chamber
Vacuum chamber assy
fixing ring of volumetric tube
Volumetric Metering Board
Syringe Motor Pos Sensor Assy
White Blood Cell Ruby Aperture
Rotation Pump(Pressure Pump)
volumetric tube
Sample Probe Assembly
Rotatory Motor Pos Sensor Assy
Red Blood Cell Ruby Aperture
Pump assembly
10 ml syringe piston tip
DOM with software(Export)
Recorder Module
Washer of front bath(5pcs)
Rotation(Waste)pump
RBC Bath Assembly (with Ruby)
DOM with software(Neutral)
Inverter(TPI-01-0207-M19)
Washer of rear bath(5pcs)
50UL SYRINGE
WBC Bath Assembly (with Ruby)
DISK, 128M MODULE
3007 switch(FRU)
WBC shielding cover
2.5ml Syringe
10ml Syringe
Software Package FRU(10.4)
Min-Switch Assembly
RBC shielding cover
10ml Syringe
Tube,Silicone,3/32"X7/32"
rotatory motor cable
elevator motor cable
Serial communication cable for DMS
Preventive maintenance Kit(FRU)
Keypad Panel(English)
Reagents for Hematology Analyzers
Brand
Model
ABBOTT Cell-Dyn
Cell-Dyn 3700，3500，3000,3200
Cell-Dyn Ruby
Cell-Dyn 1800，1700，1600，1400，1300
CD3
ABX
PENTRA 60,80,120; MICROS 60
Sysmex
KX-21, KX-21N, POCH-100i,XE-5000, XE-2100,XT-1800i, XT-2000i, XS-800i, XS-1000i, SF-3000
COULTER
GEN·S, STKS, MAXM, HmX; AcT 5diff，AcT 5diff AL, AcT 5diff OV
T, JT, MD, ONYX; AcT diff, AcT diff 2
NIHON KOHDEN
MEK-8222, MEK-7222,MEK-6318, MEK6400,MEK-6318, MEK6400
MINDRAY
BC-3600, BC-3200, BC-3000, BC-3000plus, BC-2800, BC-2600, BC-2300, BC-2800vet
BC-5300，BC-5380, BC-5800,BC-5500, BC-5200
Dymind
DH-36
